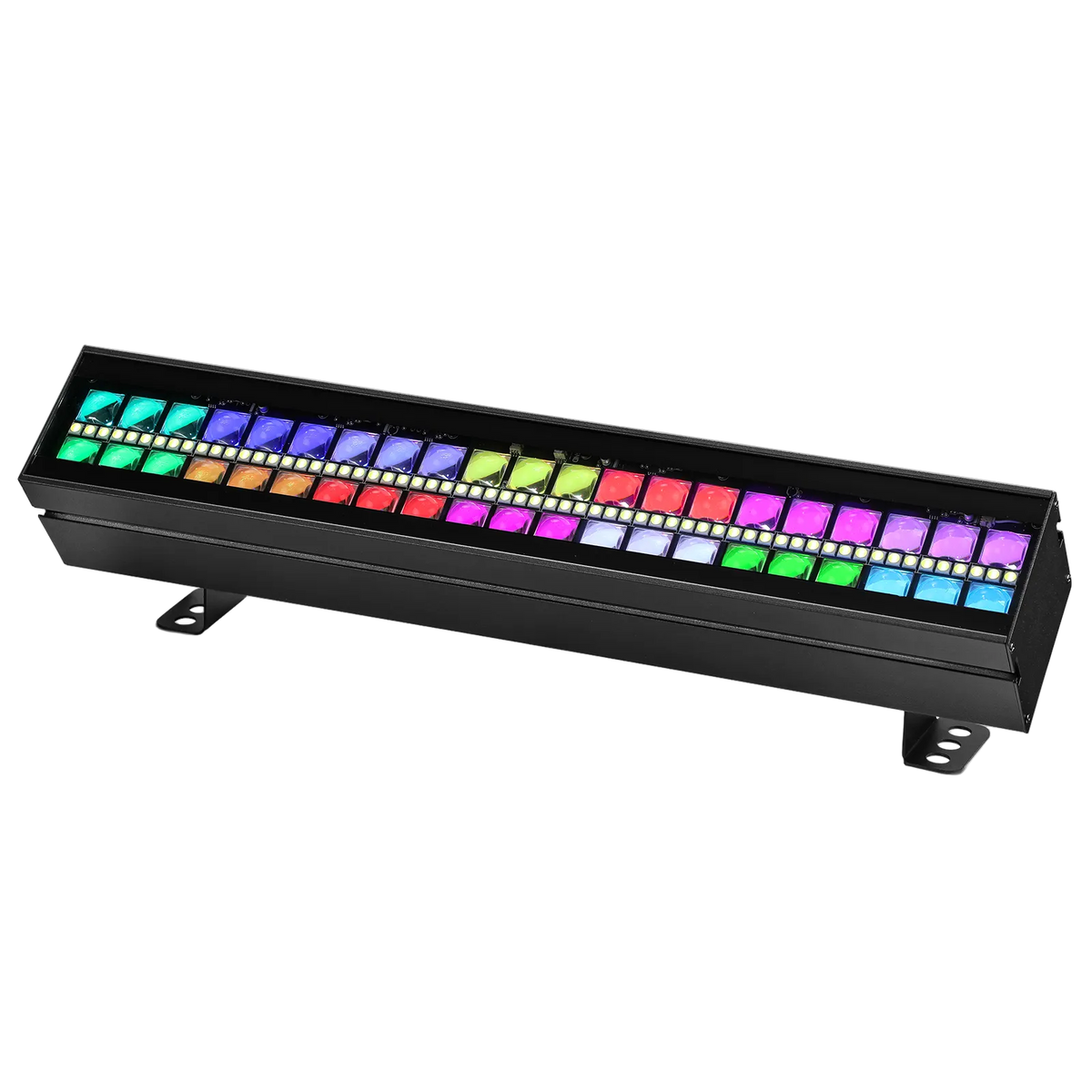

LF1421 14+21 Segment LED Light Curtain Fixture

The LF1421 is a 90 W double-row light curtain fixture with 14+21 segments, using 42 × 3 W RGB 3-in-1 LEDs plus 63 × 1 W white LEDs. Its 4/16/63-channel DMX profiles support different programming depths, while auto, sound and master-slave modes add deployment flexibility for stages, live events, rental rigs and entertainment venues.

Key Features

• 14+21 Segment Double-Row Design — Provides a segmented platform for building coordinated curtain-style lighting effects.
• RGB + White LED Sources — Combines 42 × 3 W RGB 3-in-1 LEDs with 63 × 1 W white LEDs for color and white effects.
• 4/16/63-Channel DMX — Offers three profiles for basic operation through more detailed segment programming.
• Multiple Operating Modes — Auto, sound, DMX and master-slave modes support both console-led and linked use.
• 2.8 kg Net Weight — Keeps handling practical for changing stage layouts and rental preparation.

Recommended Applications

Recommended for stages, live events, rental systems and entertainment venues that need segmented RGB and white curtain-style effects.

Request a Quote

Send us your required quantity, destination market and application details to request a B2B quote for the LF1421.
